MIG 500GF
MIG/MMA Welder / Inverter Welding Machine
- IGBT inverter technology, offering high reliability and better arc stability;
- In areas with temperature of 40℃, the welding machine can satisfy long-time welding jobs with 1.2mm welding wire;
- Suitable for welding with solid wire and flux-cored wire of different diameters;
- Presetting of voltage and current, displaying the actual welding parameters for easy operation;
- Supporting adjustment of current, voltage and arc characteristics, with 2T/4T setting;
- 36V power supply for gas cylinders;
- Waveform control in short-circuit transfer process, ensuring stable welding operation with less spatter;
| Model | |
| Input voltage | 3P/ 380V±15% |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 31.2 (MIG) 31.8 (MMA) |
| Output current adjusting range (A) | 60-450 (MIG) 60-450 (MMA) |
| Output voltage (V) | 17-36.5 (MIG) 22.4-38 (MMA) |
| No-load voltage (V) | 61 |
| Duty cycle (40℃) | 40% (MIG) 40% (MMA) |
| Power factor | 0.93 |
| Efficiency (%) | 85 |
| Type of wire feeder | External |
| No-load loss (W) | 190 |
| Wire feeding speed (m/min) | 3-15 |
| Post-flow time (S) | 1 |
| Welding wire diameter (mm) | 0.8/1.0/1.2 |
| Insulation class | Class F |
| Protection grade | IP21 |
| Welding thickness (mm) | ≥0.8 |
| Net weight (kg) | 27.5 |
| Dimensions (L×W×H) | 526×272×468 |
Wire feeder, 1 unit

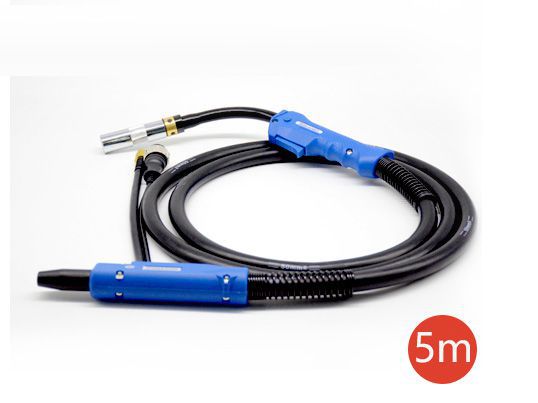

MIG welding torch, 1pc
Ground clamp & cable assembly, 1 set

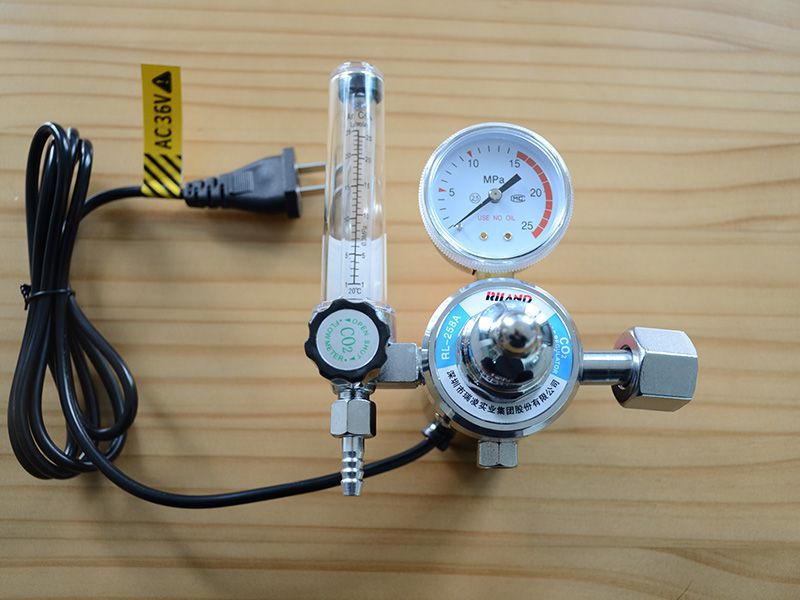

CO2 flow meter, 1pc
Welding contact tip, 2pcs
Welding contact tip, 2pcs
Nozzle shield cup

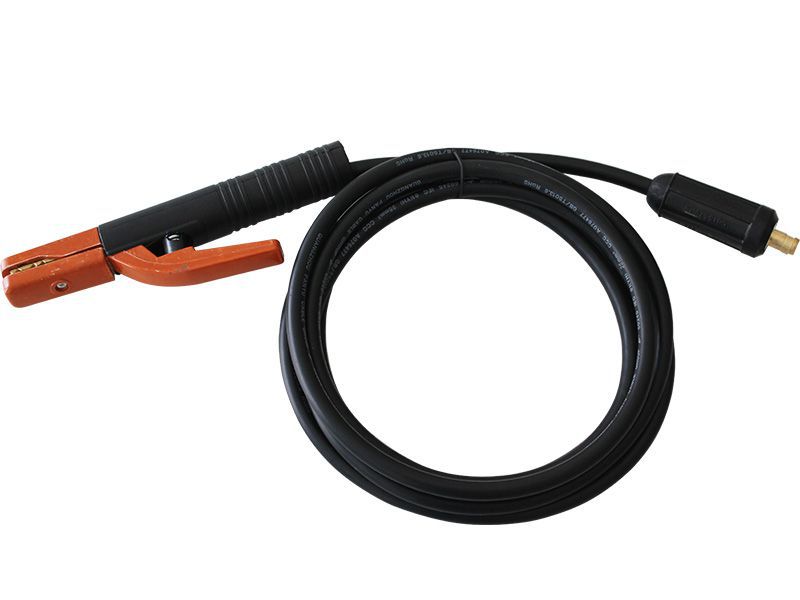

Electrode holder & cable assembly
Auto-darkening welding helmet
Welding gloves
MIG welding torch, 1pc
Swirl ring
