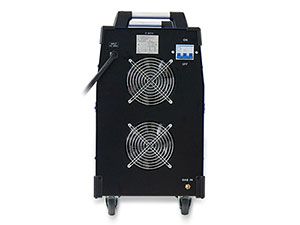

TIG 315PAC/DC
AC/DC TIG/MMA Welder / Inverter Welding Machine
- Versatile solution for multiple applications due to its functions of AC TIG welding, DC TIG welding, Pulse TIG welding and MMA (stick) welding;
- Apart from 2T (two-touch) and 4T (four-touch) operations, this TIG welding machine also has repeat welding function;
- High-frequency pulse current, pulse frequency is up to 450Hz;
- Self-adaptive clean width helps maintain a superior finish of weld seam while minimizing the consumption of tungsten electrode;
- A stable low current provides constant force to the workpieces without arc restriking, and high current ensures high reliability and low noise level;
- Unique air channel design enables a high duty cycle, allowing for long-time welding operation in high current range;
| Model | | |
| TIG | MMA | |
| Input voltage (V) | 3P/AC380±15% | 3P/AC380±15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Rated input current (A) | DC: 17.2 AC: 17.8 | 15.5 |
| No-load voltage (V) | 60 | 60 |
| Output current adjusting range (A) | 12-315 | 15-240 |
| Rated output voltage (V) | 22.6 | 29.6 |
| Duty cycle | DC: 30% AC: 40% | 60% |
| Arc starting | High frequency arc ignition | |
| Efficiency | 75% | |
| Power factor | 0.88 | |
| Insulation class | Class H | |
| Pulse frequency (low frequency) (Hz) | 0.5-15 | |
| Pulse frequency (medium frequency) (Hz) | 15-450 | |
| Current up-slope time (S) | 0-10 | |
| Current down-slope time (S) | 0-10 | |
| Base current (A) | 10-315 | |
| Arc staring current (A) | 10-315 | |
| Arc suppression current (A) | 10-315 | |
| Post-flow time (S) | 1-10 | |
| Duty cycle | 10%-90% | |
| Protection grade | IP21 | |
| Net weight (kg) | 39.8 | |
| Dimensions (L×W×H) (mm) | 670×320×640 | |
TIG welding torch, 1pc

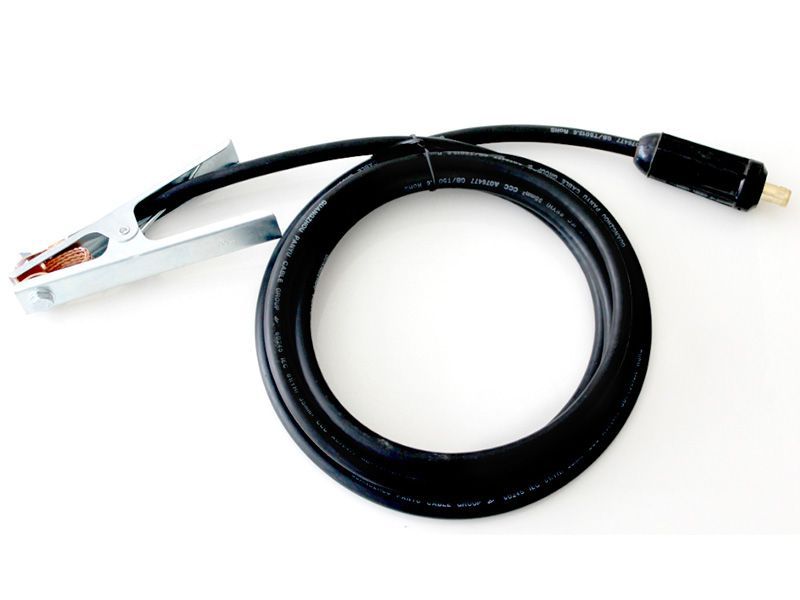

Ground clamp & cable assembly, 1 set
Tungsten electrode, 1pc

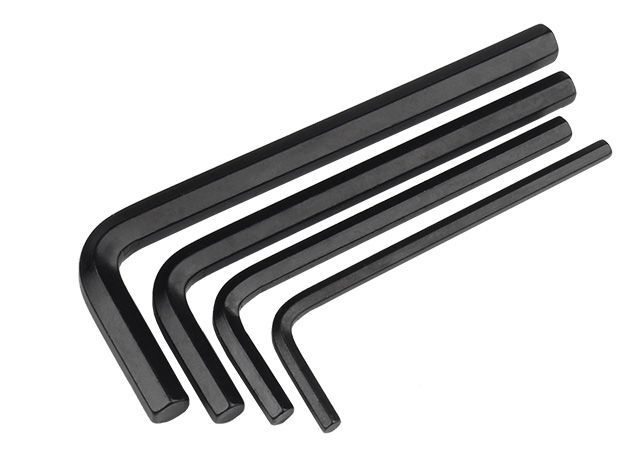

Allen key, 1pc
Welding cable quick connector, 1pc
Gas electric quick connector, 2pcs
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG welding torch
TIG welding torch
TIG back cap
Electrode holder & cable assembly
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
