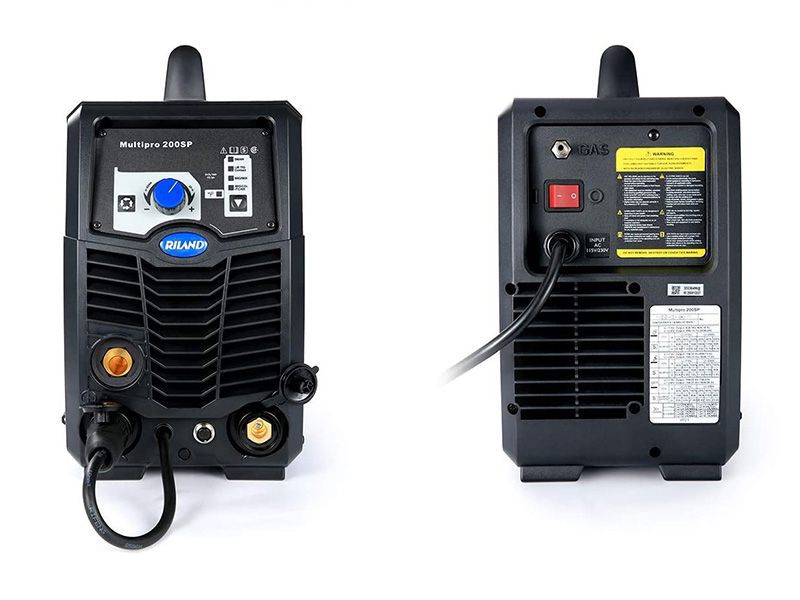

MultiPro 200SP
MIG/TIG/SMAW Welder / Inverter Welder
- Fully digital IGBT inverter technology;
- Wide input voltage range: 1P 115/230V±15%;
- Can be fitted with spool gun MIG welding torch, compatible with generator;
- Multiple welding processes: MIG, Pulse MIG, SMAW (MMA or stick) and Lift TIG;
- One-knob control and LED display, easy to operate;
- Built-in VRD, hot start and arc force functions;
- Inductance and arc length can be finely adjusted;
- 2T/4T function, multiple welding modes can serve various welding needs;
- Smart "sleep mode" function enables the fan to run when necessary, efficiently reducing the dust inside the welding machine;
- Adaptable to 1kg and 5kg spools, giving more options of wire spools;
| Model | | |
| Power voltage (V) | 1 phase 230V±15% | 1 phase 115V±15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Max. rated input current (A) | 32.7 (MIG) 26.7 (TIG) 32.2 (SMAW) | 24 (MIG) 17.2 (TIG) 24.5 (SMAW) |
| No-load voltage(V) | 61 | 61 |
| Output current adjustment (A) | 35-200 (MIG) 15-180 (TIG) 15-160 (SMAW) | 40-90 (MIG) 15-85 (TIG) 15-75 (SMAW) |
| Output voltage (V) | 15.7-24 (MIG) 10.6-17.2 (TIG) 20.6-26.4 (SMAW) | 16-18.5 (MIG) 10.6-13.4 (TIG) 20.6-23 (SMAW) |
| Duty cycle | 25% | 30% |
| Power factor | 0.73 | 0.73 |
| Efficiency (%) | 80 | 80 |
| Type of wire feeder | Internal | Internal |
| Wire feed speed (inch/min) | 120-440 (3-11m/min) | 120-240 (3-6m/min) |
| Post-flow time (s) | 3 | 3 |
| Welding wire diameter (inch) | .030"/.040" (0.8/1.0mm) | .030" (0.8mm) |
| Insulation class | Class H | |
| Protection grade | IP21 | |
| EMC grade | B | |
| Welding thickness (inch) | More than .030" (0.8mm) | |
| Weight (lb) | 28.2 (12.8kg) | |
| Dimensions (inch) | 16.5×8.7×17.3 (420×220×439mm) | |
MIG welding torch, 1pc
Electrode holder & cable assembly, 1 set
Ground clamp & cable assembly, 1 set
Power cord, 1pc
Adapter cord, 1pc
Knurled drive roll, 1pc
Welding contact tip, 2pcs
Gas hose, 1pc
ER50-6 MIG solid welding wire
E71T-GS self-shielded flux-cored wire
Welding cart
E71T-GS self-shielded flux-cored wire (Ø0.8mm)
Tungsten electrode
Ceramic cup nozzle
Ceramic cup nozzle
Ceramic cup nozzle
Ceramic cup nozzle
Ceramic cup nozzle
