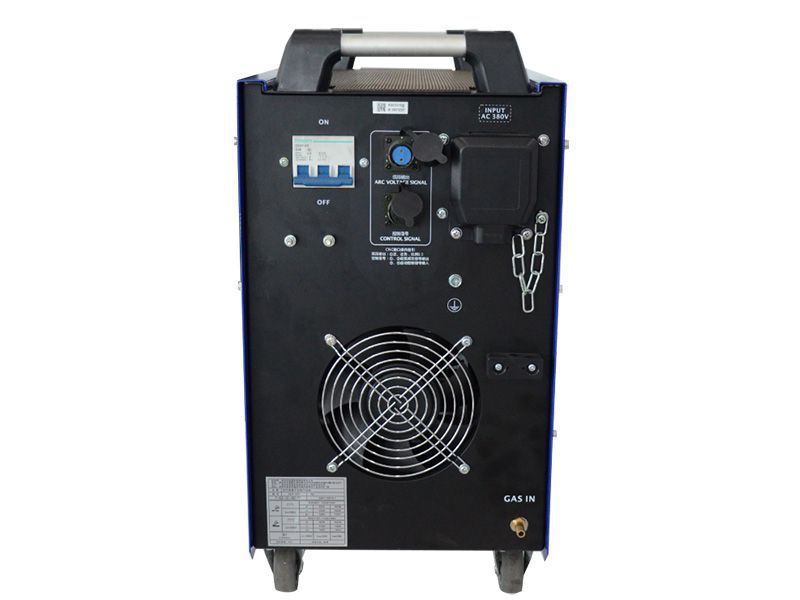

CUT 125I
Air Inverter Plasma Cutter with Gouging Capability
- IGBT inverter technology, fast dynamic response and reliable cutting performance;
- Advanced circuit design, success rate of arc starting as high as 99%, high arc stability;
- Configured with CNC interface, gouging capability, 2T/4T, air pressure switch, and post-flow control;
- Perfect for quality cutting metal sheets and plates with thickness of 30mm or below, and also suitable for piercing and beveling;
- Fast cutting speed and low energy consumption, featuring high cost effectiveness when cutting thick metal plates;
- Unique design of tri-proof air channel improves duty cycle, applicable to industrial cutting operations;
| Model | CUT 125I |
| Input voltage (V) | 3P/ AC380V±15% |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 32 |
| No-load voltage (V) | 295 |
| Duty cycle (40℃) | 60% |
| Output current adjusting range (A) | Cutting: 30-120 Gouging: 30-115 |
| Rated output voltage (V) | Cutting: 128 Gouging: 146 |
| Efficiency (%) | 89 |
| Power factor | 0.9 |
| Insulation class | Class F |
| Protection grade | IP21 |
| Arc starting | High frequency arc ignition |
| Pressure of air compressor (kgf/cm2) | 4-5.5 |
| Net weight (kg) | 32.5 |
| Dimensions (L×W×H) (mm) | 550×280×545 |
P80 plasma cutting torch, 1pc
Ground clamp & cable assembly, 1 set
Air filter regulator, 1pc
Gas hose, 1pc
CNC connector, 2pcs
- RILAND CUT 100I/125I/165I plasma cutting machines can tackle mains voltage fluctuation of ±15% (323V-437V), providing stable output cutting current and reliable arc (success rate of arc starting as high as 99%).
- Approved by RILAND's lab, these plasma cutters are compatible with 40m cutting torch (P80, cable size 14mm2).
- Metal: carbon steel plate of 16mm in thickness
- Current: 100A
- Cutting speed: 600mm/min
- Air pressure: 6kg
- Mains voltage: 380V
- Cutting effect: narrow kerf, smooth cut edge with almost no dross and slag-adherence, outstanding cutting quality
- Metal: carbon steel plate of 25mm in thickness
- Current: 120A
- Cutting speed: 300mm/min
- Air pressure: 6kg
- Mains voltage: 380V
- Cutting effect: smooth and clean cut edge, good deformation control of workpiece, ability to cut through thick metal plates
- 12mm-thick carbon steel plate
- Current: 100A
- Cutting speed: 500mm/min
- Air pressure: 5.5kg
Auto-darkening helmet
Welding gloves
Cutting torch shield cup
Plasma nozzle
Gouging nozzle
Plasma electrode
