MIG 200E
MIG/MMA Welder / Inverter Welder
- Equipped with RILAND’s self-developed RICHI chip and use the advanced IGBT inverter technology;
- Available to 5kg flux-cored self-shield wire, actually welding without gas and add hand welding function;
- Synergy, greatly reduce difficult to adjustment, especially for new welding operator;
- Stable welding performance on small current around 40A, enhancing the capacity to weld thinner metal and 0.8mm sheet, spot welded without perforation;
- Lower spatter than that of general flux-cored welding machine;
- Wire inching function act as you press the trigger about 3s under no load;
- Fan as needed, reduce noise and dust inside the machine;
- Intelligent protection: over-current, over-voltage, over heating protection;
| Model | |
| Input voltage (V) | 1P/220V (±15%) |
| Frequency (Hz) | 50/60 |
| No-load voltage (V) | 55 |
| Rated input current (A) | 23.7 (MIG) 22.7 (MMA) |
| Output current adjusting range (A) | 60 - 140 (MIG) 50 - 120 (MMA) |
| Output voltage (V) | 17 - 21 (MIG) 22 - 24.8 (MMA) |
| Duty cycle | 15% |
| Power factor | ≥0.62 |
| Efficiency | ≥81% |
| Type of wire feeder | Internal |
| Welding wire diameter (mm) | 0.8/1.0 |
| Insulation class | Class F |
| Protection grade | IP21 |
| Net weight (kg) | 5.5 |
| Dimensions (L×W×H) (mm) | 401×176×260 |
MIG welding torch, 1pc

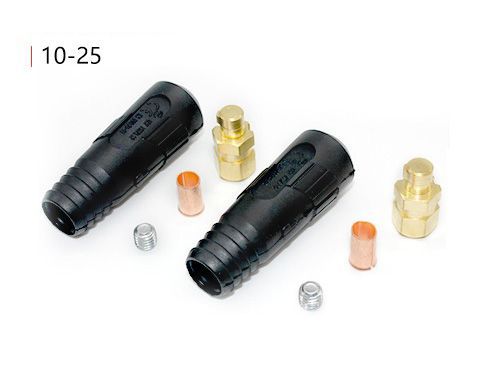

Welding cable quick connector, 1pc
Ground clamp & cable assembly, 1 set
Allen key, 1pc
E71T-GS self-shielded flux-cored wire

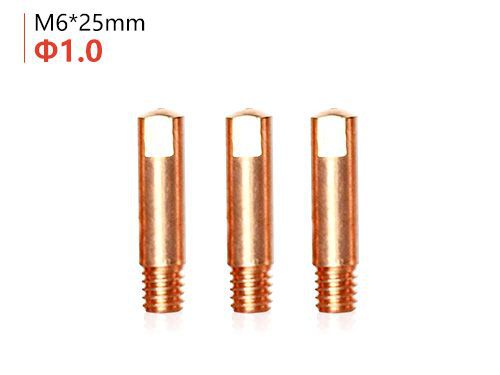

Welding contact tip
Welding contact tip
Electrode holder & cable assembly
Steel welding wire brush
Welding gloves
Auto-darkening welding helmet

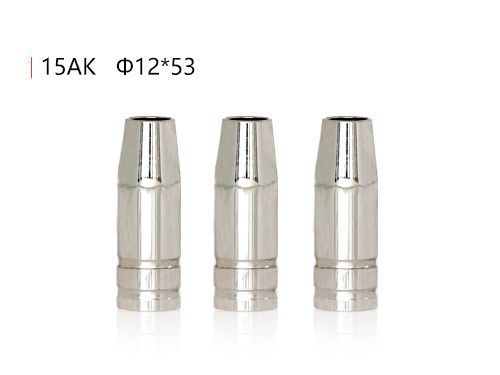

Nozzle shield cup
