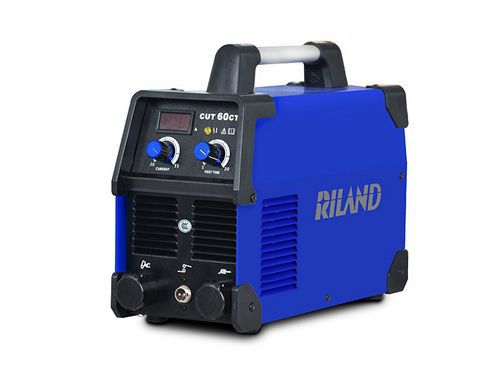

CUT 60CT
Inverter Plasma Cutter / Air Plasma Cutting Machine
- Reliable cutting performance, contact arc starting, high success rate of arc ignition;
- Excellent arc stability, creating a narrow kerf and smooth cut edge, with lower cutting cost;
- Fast cutting speed, suitable for cutting carbon steel plate of 10mm at high speed;
- Designed with corner protectors, reducing potential scratches;
- Digital display;
- Adjustable post-flow time, plasma cutting torch is cooled for longer service life;
- Compact size and lightweight, easy to carry;
| Model | |
| Input voltage (V) | AC220V±15% |
| Frequency (Hz) | 50/60 |
| Rate input current (A) | 41.5 |
| No-load voltage (V) | 300 |
| Current Range (A) | 20-55 |
| Rate output voltage (V) | 102 |
| Duty cycle | 30% |
| Efficiency | 80% |
| Power factor | 0.79 |
| Insulation class | Class F |
| Protection grade | IP21 |
| Arc starting | Contact arc ignition |
| Pressure of air compressor (kgf/cm2) | 4-5.5 |
| Limited cutting thickness (mm) | 20 |
| Recommended cutting thickness (mm) | 1-15 |
| Weight (kg) | 8 |
| Dimensions L×W×H(mm) | 402×160×300 |

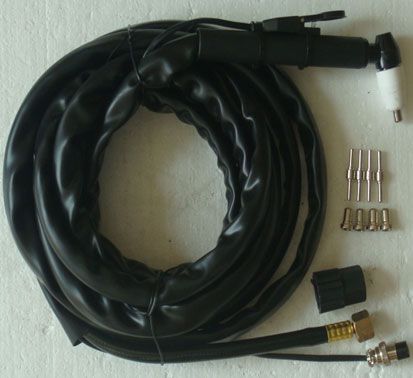

PT-31 plasma cutting torch, 1pc
Ground clamp & cable assembly, 1 set
Air filter regulator, 1pc
Gas hose, 1pc
PT31 plasma nozzle
PT31 plasma nozzle
PT31 plasma nozzle
PT31 plasma nozzle
Swirl ring
Nozzle shield cup
PT31 plasma electrode
PT31 plasma electrode
Auto-darkening welding helmet
