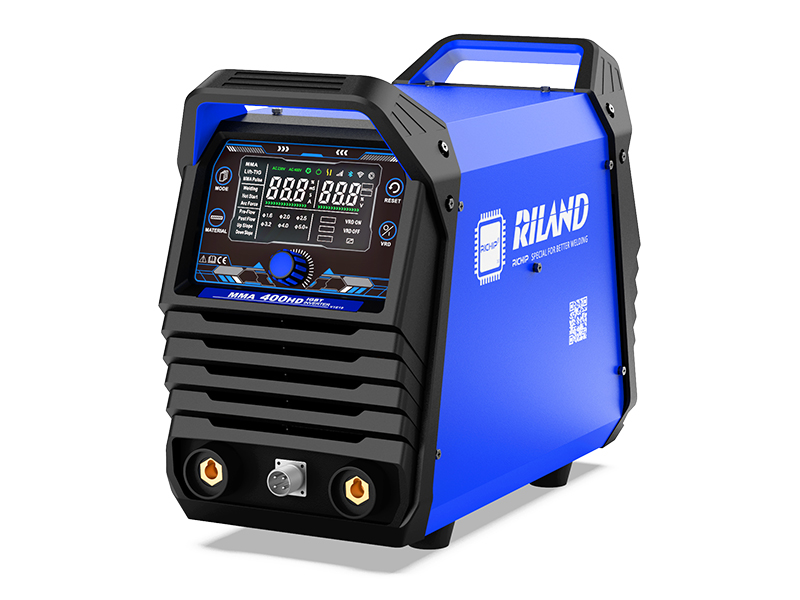

MMA 400HD
ARC MMA Welding Machine / Inverter Stick Welder
- Robust industrial housing with a clean, protective design. The IP23S protection rating helps protect the machine against water spray and solid objects larger than 12.5 mm
- Equipped with RILAND self-developed RICHIP chip technology for high functional integration and low processing latency, helping improve operating efficiency
- Intelligent synergic control system for easier setup and operation
- Supports MMA stick welding and Lift-TIG welding, allowing users to select the appropriate welding mode for different applications
- Adjustable Anti-Stick, Arc Force, and Hot Start functions for improved arc starting and welding control
- A patented hexagonal air duct design helps reduce dust intake and lower the risk of machine failure
- VRD (Voltage Reduction Device) helps enhance operator safety by reducing open-circuit voltage when the machine is not welding
- Built-in overcurrent, over-temperature, and overvoltage protection helps reduce downtime and maintenance costs
| Model | | |
| Power supply (V) | 1P AC230V ±15% | |
| Frequency (Hz) | 50/60 | |
| Open circuit voltage (V) | 68/18(VRD) | |
| Rated input current (A) | 27 (TIG) 40 (MMA) | |
| Rated input power capacity (kVA) | 6.1 (TIG) 9.5 (MMA) | |
| Output current range (A) | 10-200 (TIG) 30-200 (MMA) | |
| Rated duty cycle (%) | 25 | |
| Efficiency (%) | 83 | |
| Power factor | 0.71 | |
| Protection rating | IP23S | |
| Insulation class | H | |
| Dimensions (L×W×H) (mm) | 345×168×285 | |
Earth clamp
1 set electrode holder
Ground clamp & cable assembly
Auto-darkening welding helmet
Electrode holder & cable assembly
Welding gloves
Welding chipping hammer
Get in Touch
RILAND started its business in 2003 with the goal to design, manufacture and supply inverter welding and cutting equipment, including inverter MMA welders, inverter TIG welders, inverter MIG welders, air inverter plasma cutters, robotic welding systems, automatic welding carriages, digital intelligent welding systems, welding & cutting accessories and welding safety equipment. At RILAND, we do not consider ourselves as only a welding equipment manufacturer, but also position ourselves as an innovative technological force. With many years of development in the welding industry, RILAND currently has 10 holding subsidiaries, and strive to continue to progress steadily towards the next growth target of becoming international first-class comprehensive enterprise of welding equipment.
Read MoreRelated Products
-
- ARC 315GTS
ARC MMA Welder
IGBT inverter technology, high switching frequency and fast response;
-
- MMA Stick Welder

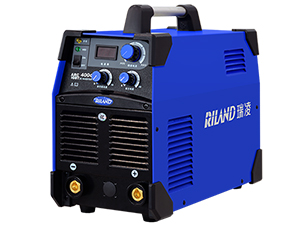

ARC 400G
