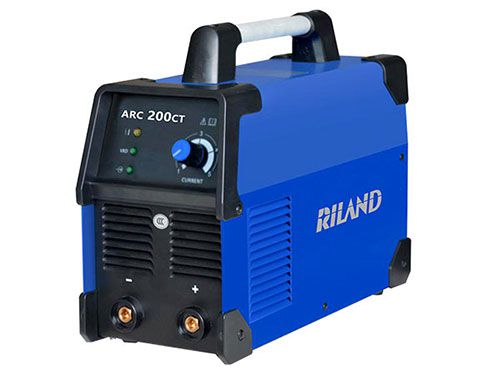

ARC 200CT
ARC MMA Welding Machine / Stick Welder
- Use 100 KHz inverter MOSFET technology;
- With plastic corner, sloping front panel;
- Adopting new techniques to maximize heat dissipation via 4 separated heat sinks;
- Greatly improved welding performance and stability;
- Easy striking under low voltage;
- Intelligent protection against over-voltage, over-loading and over-heating;
- Auto-adaptive arc force and hot start current;
- Anti-stick function;
- VRD function;
- Pass the high voltage 3750V AC dielectric strength test, ensuring operator's safety;
- Energy-efficient: power factor more than 0.7, efficiency more than 85%;
Model | |
Input voltage | 1P/220V (±15%) |
Frequency (Hz) | 50/60Hz |
Duty cycle (40℃) | 30% |
No-load voltage (V) | 70V |
VRD voltage | 18V |
Current adjusting range (A) | 30-160A |
Efficiency | 85% |
Power factor | 0.70 |
Protection grade | IP21S |
Insulation class | Class H |
Anti-shock protection | Class I |
Electromagnetic Compatibility (EMC) | A |
Static characteristic | Drooping characteristic |
Cooling method | Forced air cooling |
Net weight (kg) | 5.5 |
Dimensions (L×W×H) (mm) | 365×172×320 |
