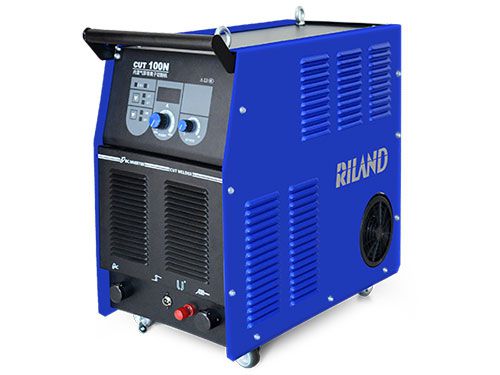

CUT 100N
Inverter Plasma Cutter with Built-in Air Compressor
- Plasma cutter with built-in air compressor, offering fast cutting speed while keeping the consumption rate of electrodes and cutting tips at low level;
- Can be used with either external or internal air source, the constant output pressure of internal air compressor is 0.45MPa;
- Designed with functions of 2T/4T, air pressure switch, and post-flow control;
- Built-in protection against overcurrent, overheating, underpressure and phase loss;
- Ideal cutting thickness: 20mm (internal air compressor), 25mm (external air compressor);
| Model | |
| Input voltage (V) | 3P/AC380V±(±15%) |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 23 |
| Rated input power (kVA) | 15.1 |
| No-load voltage (V) | 270 |
| Duty cycle (40℃) | 40% |
| Output current adjusting range (A) | 20-100 |
| Output voltage range (V) | 88-120 |
| Post-flow time (s) | 5-20 |
| Efficiency (%) | 85% |
| Power factor | 0.9 |
| Electromagnetic Compatibility (EMC) | A |
| Insulation class | Class F |
| Protection grade | IP21 |
| Arc starting | Non-contact arc ignition |
| Pressure of air compressor (kgf/cm2) | 4-5.5 |
| Limited cutting thickness (mm) | 45 |
| Recommended cutting thickness (mm) | 1-30 |
| Net weight (kg) | 50.5 |
| Dimensions (L×W×H) (mm) | 670×320×640 |
P80 plasma cutting torch, 1pc
Ground clamp & cable assembly, 1 set
Air filter regulator, 1pc
Gas hose, 1pc
Auto-darkening helmet
Welding gloves
Cutting torch shield cup
Plasma nozzle
Gouging nozzle
Plasma electrode
