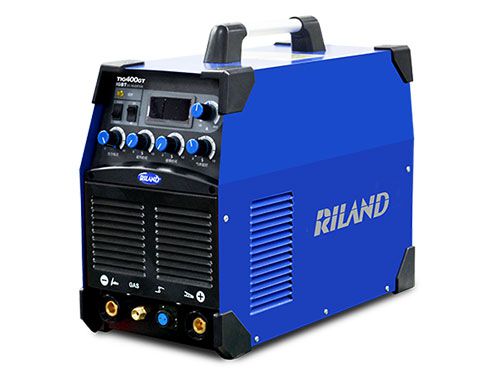

TIG 400GT
TIG/MMA Welder / Inverter Welding Machine
- IGBT inverter welding technology, delivering fast response and better arc stability;
- Suitable for pipe welding, dual use of TIG welding and MMA welding offers high welding performance;
- Multiple functions include 2T (two-touch) / 4T (four-touch) operations, post-flow time, up-slope time, down-slope time and arc force are adjustable according to the actual application;
- High output power enables long-time welding operation at high current levels;
- Argon arc welding is applied for bottoming (bottom welding) while the high-efficiency manual welding is used for covering (cover welding);
- Unique tri-proof air channel design enables better heat dissipation efficiency and higher duty cycle;
| Model | |
| Input voltage (V) | 3P/ AC380V±15% |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | TIG: 22 MMA: 26.6 |
| No-load voltage (V) | 60 |
| Output current adjusting range (A) | TIG: 10-400 MMA: 10-380 |
| Rated output voltage (V) | TIG: 26 MMA: 35.2 |
| Arc force adjusting range (A) | 0-50 |
| Duty cycle (%) | 40% |
| No-load loss (W) | 100 |
| Efficiency (%) | 80% |
| Power factor | 0.90 |
| Protection grade | IP21 |
| Net weight (kg) | 20 |
| Dimensions (L×W×H) (mm) | 508×244×423 |
TIG welding torch, 1pc
Ground clamp & cable assembly, 1 set
Tungsten electrode, 1pc
Allen key, 1pc
Welding cable quick connector, 1pc
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 tungsten electrode collet
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 ceramic cup nozzle
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG 17/18/26 tungsten electrode collet body
TIG welding torch
TIG welding torch
TIG back cap
Electrode holder & cable assembly
Tungsten electrode
Argon flow meter regulator
Auto-darkening welding helmet
Welding gloves
