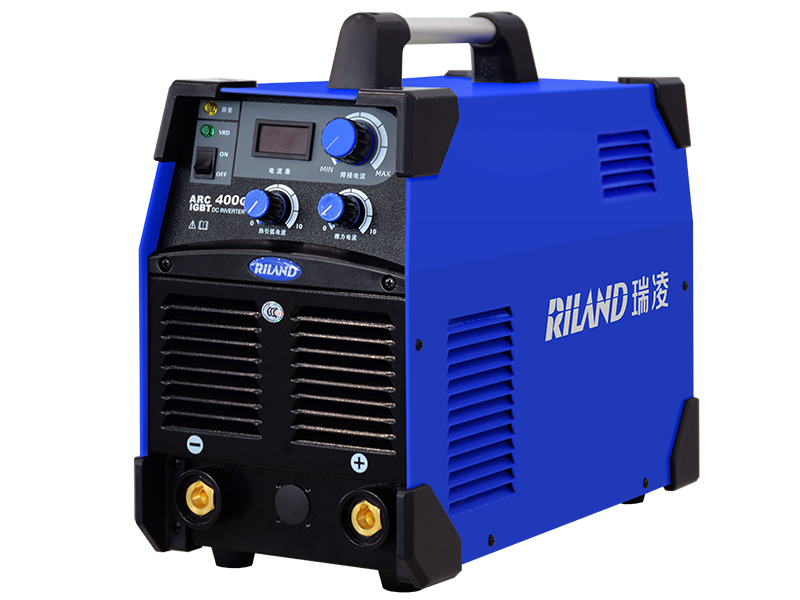

ARC 400G
ARC MMA Welding Machine / Inverter Stick Welder
- Advanced IGBT inverter technology provides low conduction resistance, low switching loss, and improved energy conversion efficiency
- Wide input voltage range of 380V ±15%, with support for generator power input
- Digital display allows users to preset and monitor welding current in real time
- Dust-resistant cooling system helps improve the duty cycle and operating reliability
- Adjustable Arc Force and Hot Start functions support smooth arc ignition and stable welding performance
- VRD function reduces no-load voltage to help enhance operator safety
- Automatic overvoltage, overcurrent, and overheating protection
- Eight plastic corner protectors help protect the machine body and improve the overall appearance
| Model | | |
| Input voltage (V) | 3P -380±15% | |
| Frequency (Hz) | 50/60 | |
| Rated input current (I1max) (A) | 27.6 | |
| Rated input current (I1eff) (A) | 21.4 | |
| No-load voltage (V) | 65 | |
| Output current range (A) | 40-300 | |
| Output voltage (V) | 21.6-32 | |
| Duty cycle (40℃) | 100% | |
| Power factor | 0.93 | |
| Efficiency (%) | 85 | |
| Insulation class | H | |
| Housing protection rating | IP21 | |
| Weight (kg) | 13.5 | |
| Dimensions (L×W×H) (mm) | 466*212*371 | |
Welding cable quick connector, 2pcs
Allen key, 1pc
MMA welding fillet joint in horizontal position
MMA welding fillet joint in vertical position
- Suitable for welding carbon steel, stainless steel, copper plates, with good weld quality;
- Compact size and lightweight, easy to carry and take to any jobsites;
- Strong capability of adapting to mains voltage fluctuation, sufficient output of welding current, better welding stability;
Ground clamp & cable assembly
Auto-darkening welding helmet
Electrode holder & cable assembly
Welding gloves
Welding chipping hammer
