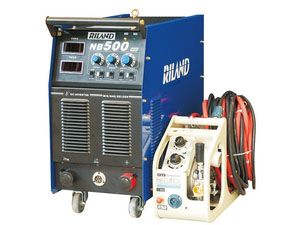

MIG 500I
MIG/MMA Welding Machine / Inverter Welder
- IGBT inverter technology, providing high reliability and better arc stability;
- Multi-process welder, designed with MIG welding, MMA welding and carbon arc gouging functions;
- 60% duty cycle at 40℃, providing excellent welding performance, ideal option for users in heavy industry;
- Effective CTWD (Contact to Work Distance) for adaptive loop is less than 30mm, suitable for welding in all positions;
- Waveform control of droplet transfer ensures high arc stability, less spatter and good welding seam formation;
- Removing tip ball after welding, ensuring high success rate of arc starting;
- Particularly suitable for welding applications in the steel structure and shipbuilding industry;
| Model | |
| Input voltage | 3P/ 380V±15% |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 38.4 |
| Output current adjusting range (A) | MIG: 80-500 MMA: 50-500 |
| Output voltage (V) | MIG: 18-39 MMA: 22-40 |
| Duty cycle (40℃) | 60 |
| Power factor | 0.93 |
| Efficiency (%) | 85 |
| Type of wire feeder | Panasonic style |
| Wire feeding speed (m/min) | 3-15 |
| Post-flow time (S) | 1.5±0.5 |
| Welding wire diameter (mm) | 1.0/1.2/1.6 |
| Insulation class | Class H |
| Protection grade | IP21S |
| Welding thickness (mm) | ≥1.0 |
| Net weight (kg) | 48.5 |
| Dimensions (L×W×H) | 670×320×640 |
Wire feeder, 1 unit
MIG welding torch, 1pc
Ground clamp & cable assembly, 1 set
Welding contact tip, 2pcs
Welding contact tip, 2pcs
Nozzle shield cup
Electrode holder & cable assembly
Auto-darkening welding helmet
Welding gloves
MIG welding torch, 1pc
